MeOxy  O2 Gauges

That's where I feel quite strong

Barometric ppO2 adaptation table

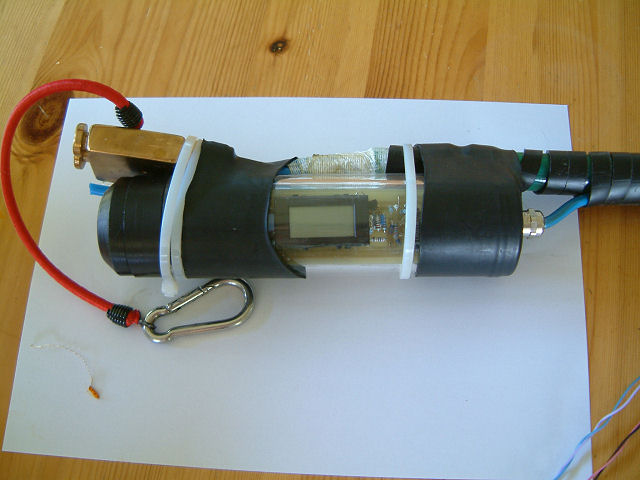

First Version =Traditional


Second Version =Traditional & remote meter



Third Version = Three parts design with casted remote meter




Concept	Separated measure from meter
Depth	Foreseen 50m  / 100m probable
Measure Box	50 x 5mm Plexiglas
Sensor separation	Casted preasure separation
Meter Box	Casted Plexiglas
Background light	Automatic controlled by sensor
Measure range pp O2	0.0 to 1.999 Bar
Sensor range for .209 pp O2	ca. 6 - 20 mV
Stability	Temperature and supply stabilized
Alarms	Low and High
Low O2	Fixed to 0.190 Bar
High O2	Adjustable 1.2 - 1.8 Bar
Sound	In meter housing
Visible	1. blue LED in meter, 2. in measure box
Battery	4x AAA
Supply	3.8 to 11 Volt
Current	2 - 40 mA
Operation time	More than 100h expected / 2 years
