MeCCR V''x = Version II + X

Trimix enabled !!

Sine more than one year I exchanged my normal steel versus carbon bottles. Naturally, in the water, I need the same overall weight. But on land I can get my machine ca. 12 Kg lighter, just by taking away easy removable lead.


I intend to do some deeper diving. Means I need some helium in my diluent.

I want to keep my inside 5 liter bottle to inflate my vest and my dry suite. In case I do shallow dives, this bottle will be my "normal" diluent.

For the deeper dives a third small diluent bottle is fixed aside of my box. The existing aluminium rails are perfect for application, I just needed an additional slider construction.


When I prepare my dive I can change diluent source from inside ( Air) to outside ( Trimix) bottle by swapping a tube. This is a saver way than a 3-way valve I tried before. Under water there is no reason to swap diluent. In the first picture you can see from left to right:
5 l bottle air, scrubber, 2l bottle O2, LiFePO4 battery tank, 2l bottle Trimix .

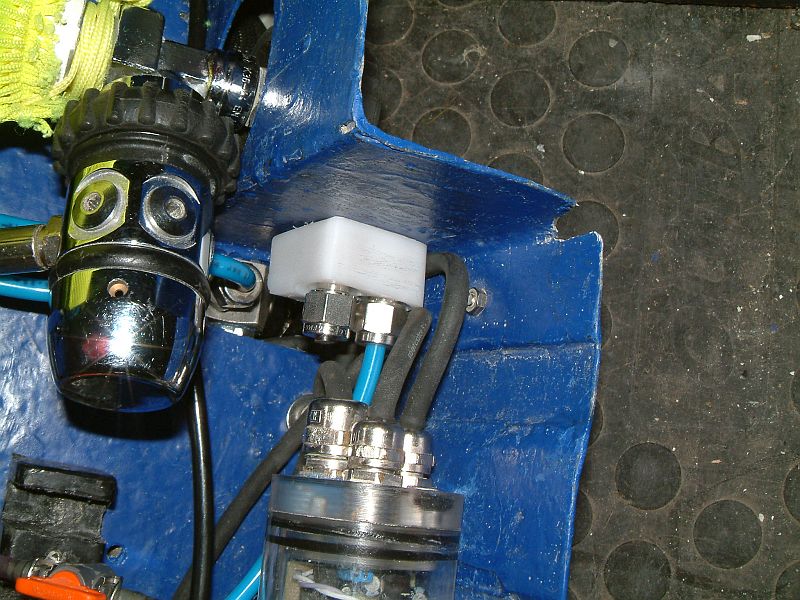

MeCCRV2_X_05.jpg	MeCCRV2_X_04.jpg	MeCCRV2_X_06.jpg

First test dive : 15 Mars 2010 in Ueberlingen

Type CCR as KISS

Size 480 x 590 x 220 mm + 120 Tx bottle side

Weight base ca. 25 kg --> full equipped 42 kg

Jacket SCUBAPRO: Wing

Breathing bag volume ca. 5-6 litre

Scrubber >2 Kg Dive Sorb

Bypass Modified Draeger

Over pressure valve Modified APEKS

Breathing hose Modified Draeger Ray

Diluent tank 5 litre carbon

Regulator Diluent Scubatec F40 compensated

O2 tank 2 litre carbon

Regulator O2 Draeger Ray compensated

O2 tank 2 litre carbon

Regulator O2 Noname compensated

O2 I gauge Self-made with blue LED alarm

O2 II gauge computer HS Explorer

O2 III gauge controller My AVR based O2 injector ( postponed )

Dosage constant SWAGELOK

Dosage manual injection Diluent and O2

Dosage automatic injected Magnetic valve 5V STAIGER ( postponed )

Specialties In situ cleaning,
5 minutes preparation,
On demand external diluent bottle
Weight system exchangeable versus fixation points
Lungs have tube and valves to rinse
